Model 5601

Photo 1

Engineered for heavy-duty applications, the Model 5601 is a great door for most docks or warehouses.

  • Duty Rating Heavy-Duty
  • Insulation/R-Value N/A
  • Layers 1
  • Warranty 25-Year
  • Price $$$

Industry Standard

Strong 26-Gauge corrugated steel with 22 standard colors, up to 4″ deep galvanized steel guides, and sizes up to 18′ x 18′ make the Model 5601 the perfect option for most commercial rolling sheet door requirements.

Strength + Security

The 5601 features dual galvanized steel slide bolt locks, 12-gauge steel wall mounting brackets, steel bearing shaft support, 12″ drums enclosed in a full width galvanized steel barrel, and heavy-duty galvanized steel guides.

3-Part Specifications

Amarr’s 3-Part specifications are written in the latest CSI format and are available for download in PDF, Microsoft Word, and Rich Text Format.

Select file type to download



Choice of Finishes:

Galvalume, White, Silhouette, Polar Blue, Royal Blue, Forest Green, Evergreen, Fern Green, Dark Teal, Teal, Marine Green, Glossy White, Buckskin, Desert Tan, Continental Brown, Cedar Red, Valentine Red, Tangerine, Sunset Orange, Patriot Red, Maroon, Safety Yellow, French Oak, Bronze

Choice of Operations: Chain Hoist Model 5601

Showing 1 of 2

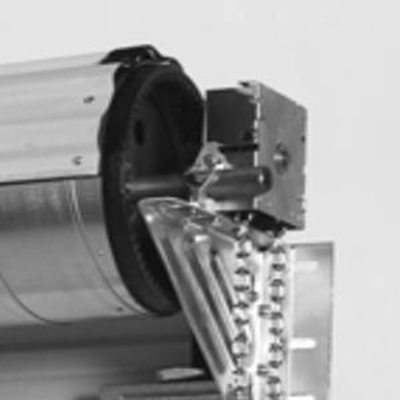

  • Chain Hoist Model 5601
    Chain Hoist Model 5601

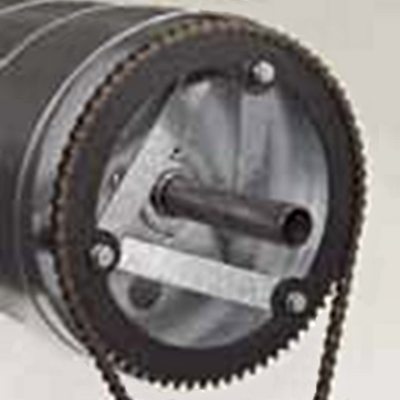

  • Electric Operator Kit
    Electric Operator Kit


Technical Features

Showing 1 of 4
  • Dual Galvanized Steel Slide Bolt Locks
    Dual Galvanized Steel Slide Bolt Locks
  • Galvanized Steel Guides
    Galvanized Steel Guides
  • Interior and Exterior Wear Strip
    Interior and Exterior Wear Strip
  • 12 Gauge Wall Mounting Bracket
    12 Gauge Wall Mounting Bracket


 Model 5601
Sheet Steel Thickness26 ga
Max Standard Width18′-0″
Max Standard Height18′-0″
Spiral Wound Barrel Diameter12″
Guides12 Ga
Wind Load AvailableNo
