Model 5652

Photo 2

Manufactured to withstand high wind speeds, the Model 5652 can help protect property and products in storm prone areas. Nylon windlocks provide maximum protection without sacrificing ease of operation.

  • Duty Rating Heavy-Duty
  • Insulation/R-Value N/A
  • Layers 1
  • Warranty 25-Year
  • Price $$$

Wind Load Security

The Model 5652 has been designed and tested to meet the wind load requirements of the International Building Code and the Florida Building Code (FL14425)

Ease of Operation

The Model 5652 utilizes nylon windlocks that provide high wind load pressure protection while allowing for ease of operation.

3-Part Specifications

Amarr’s 3-Part specifications are written in the latest CSI format and are available for download in PDF, Microsoft Word, and Rich Text Format.

Select file type to download



Choice of Finishes: Galvalume, White, Silhouette, Polar Blue, Royal Blue, Forest Green, Evergreen, Fern Green, Dark Teal, Teal, Marine Green, Glossy White, Buckskin, Desert Tan, Continental Brown, Cedar Red, Valentine Red, Tangerine, Sunset Orange, Patriot Red, Maroon, Safety Yellow, French Oak, Bronze

Choice of Operations: Chain Hoist Model 5652

Showing 1 of 2

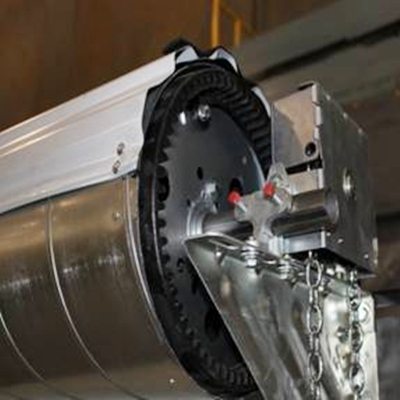

  • Chain Hoist Model 5652
    Chain Hoist Model 5652

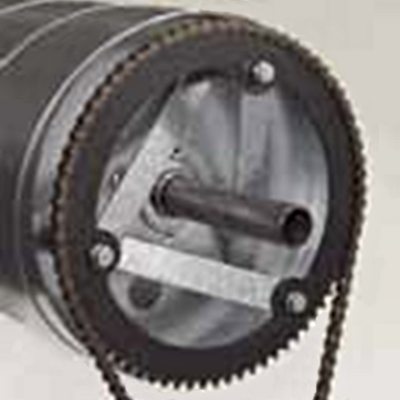

  • Electric Operator Kit
    Electric Operator Kit


Technical Features

Showing 1 of 4
  • Dual Galvanized Steel Slide Bolt Locks
    Dual Galvanized Steel Slide Bolt Locks
  • Galvanized Steel Guides
    Galvanized Steel Guides
     Exterior Wear Strip
  • 12 Gauge Wall Mounting Bracket
     12 Gauge Wall Mounting Bracket
  • 12 Gauge Steel Windlocks
     12 Gauge Steel Windlocks


Model 5652
Sheet Steel Thickness26 ga
Max Standard Width18′-0″
Max Standard Height20′-0″
Spiral Wound Barrel Diameter12″
Guides11 Ga
Wind Load AvailableYes
