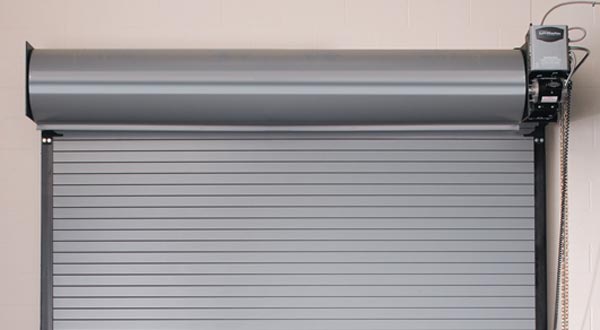

Model 4100
In applications where climate control is a must, the 4100 Series provides maximum energy efficiency by using a polyurethane core that is foamed-in-place between the exterior and interior galvanized steel skins.
- Duty Rating Extra HD or Heavy-Duty
- Insulation/R-Value 6.29
- Layers 3
- Warranty 2-Year Limited
- Price $$$$
MAXIMUM R-VALUE
Our insulation has an R-value of 6.29 and is of the highest quality available with a flame spread not greater than 25 and smoke generation less than 50.
PRODUCT FLEXIBILITY
The Model 4100 is available in replaceable 22, 20, or 18 gauge insulated flat slats.
3-PART SPECIFICATIONS
Amarr’s 3-Part specifications are written in the latest CSI format and are available for download in PDF, Microsoft Word, and Rich Text Format.
Select file type to download
- 3_Part_Spec_model_4100.pdf
- 3_Part_Spec_model_4100.doc
- 3_Part_Spec_model_4100.rtf
OPTIONS
Choice of Finishes: Galvalume, Gray, Tan
Slat Detail Options: Optional Windows
Showing 1 of 1

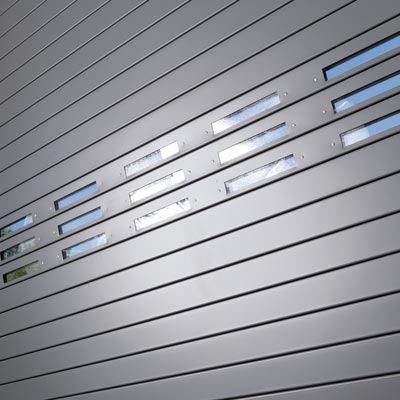

Optional Windows
Choice of Operations: Chain Hoist
Showing 1 of 2- Chain Hoist

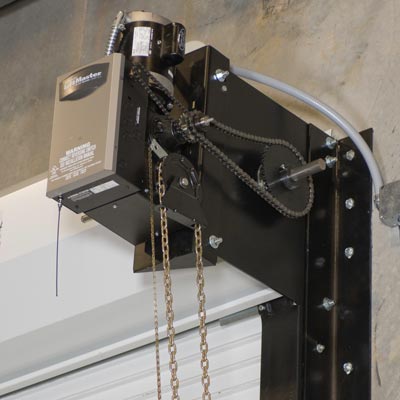

- Electric Operator

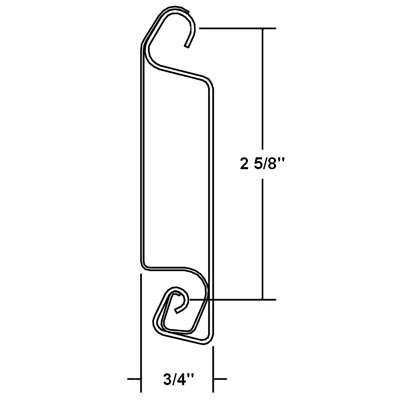

Slat Profile Options: AI265
Showing 1 of 1- AI265
FEATURES
Technical Features
Showing 1 of 5- Cast Iron Gears
- Structural Steel Angle Guides
- Foamed In Place Polyurethane Insulation
- Optional Plated Steel Bottom Bar Slide Locks
- Optional Motor Operation
SPECIFICATIONS
Model 4100 Steel Slat Gauge Options 22, 20 & 18 ga Max Door Width 30’4″ Max Door Height 24’4″ Guides Structural Steel Angle Wind Load Available Yes Model 4100
