Model 4200

Photo 2

For unequaled protection and simplicity of testing, the 4200 Series fire door provides a new dimension to fire protection. The 4200 Series secures openings in fire walls with UL listed features that assure fast, reliable responses to threats against people and property.

  • Duty Rating: Extra HD or Heavy-Duty
  • Insulation/R-Value: N/A or 7.7
  • Layers: 1 or 3
  • Warranty: 2-Year Limited
  • Price: $$$ or $$$$

Fire Protection

The Model 4200 is the heavy-duty solution for the commercial or industrial opening in a fire wall.

Product Flexibility

The Model 4200 is available in replaceable 22, 20, or 18 gauge flat slats, in three standard colors.

3-Part Specifications

Amarr’s 3-Part specifications are written in the latest CSI format and are available for download in PDF, Microsoft Word, and Rich Text Format.

Select file type to download

3_Part_Spec_model_4200.pdf
3_Part_Spec_model_4200.doc
3_Part_Spec_model_4200.rtf

Options

Choice of Finishes: Galvalume, White, Gray, Tan

Slat Detail Options: Optional Windows

Showing 1 of 1

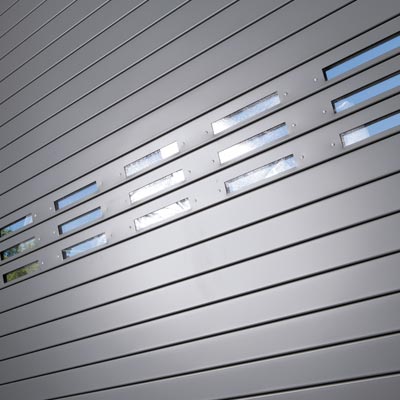

  • Optional Windows
    Optional Windows

Choice of Operations: Chain Hoist

Showing 1 of 2


  • Chain Hoist
  • Electric Operator
    Electric Operator

Fire Door Release Device: XP24

Showing 1 of 3

  • XP24
    XP24

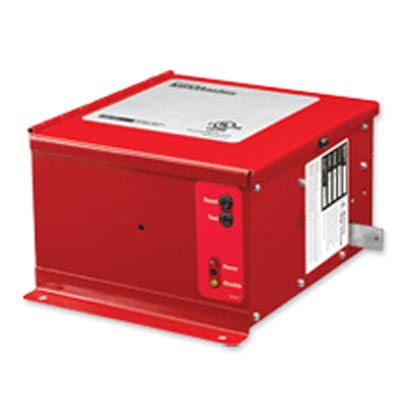

  • XPBB
    XPBB

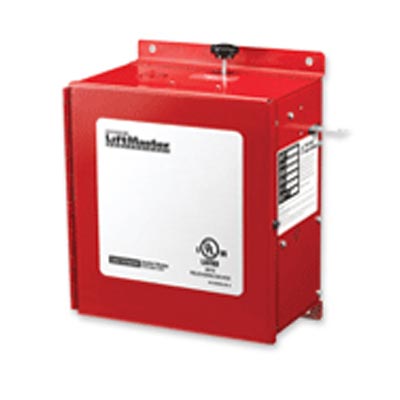

  • XPBBVB
    XPBBVB

Slat Profile Options: AC275

Showing 1 of 3

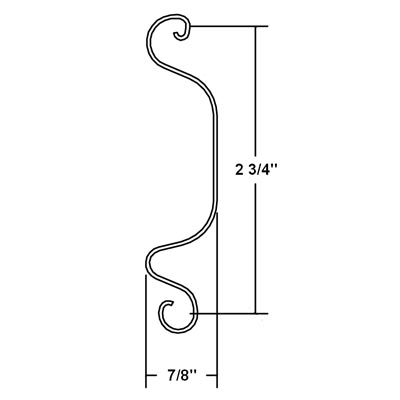

  • AC275
    AC275

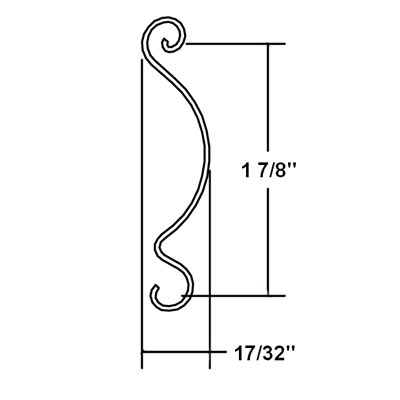

  • AC187
    AC187

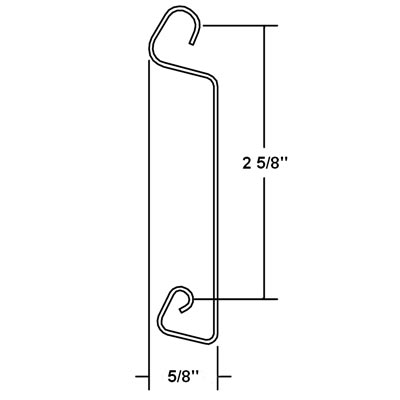

  • AF265
    AF265

Features

Technical Features

Showing 1 of 5 out of 6

  • Structural Steel Angle Guides
    Structural Steel Angle Guides
  • Optional Plated Steel Bottom Bar Slide Locks
    Optional Plated Steel Bottom Bar Slide Locks
  • Option of Three Fail Safe Motor Operated System
    Option of Three Fail Safe Motor Operated System
  • Optional Fail Safe Release Devices
    Optional Fail Safe Release Devices
  • Optional Warning Strobes, Smoke Detectors
    Optional Warning Strobes, Smoke Detectors

Specifications

Model 4200
Steel Slat Gauge Options22, 20 & 18 ga
Max Door Width30’4″
Max Door Height24’4″
GuidesStructural Steel Angle
Wind Load AvailableYes
