Model 1000
Solid steel construction is the basis for the Model 1000. Two tough steel skins surround 2 inches of CFC-free polystyrene insulation. In addition, a thermal break creates a barrier to keep heat and cold from transferring through the door.
- Duty Rating: Heavy-Duty
- Insulation/R-Value: 9.19
- Layers: 3
- Warranty: 10-Year
- Price: $$$
STRENGTH + INSULATION
24 gauge exterior and 27 gauge interior steel bonds to rigid polystyrene to create a strong, energy efficient panel.
ECO-FRIENDLY
Amarr’s polystyrene insulation is free of Ozone depleting Chlorofluorocarbons (CFC) while providing efficient insulation to help reduce the negative environmental impact of heating and cooling energy use.
3-PART SPECIFICATIONS
Amarr’s 3-Part specifications are written in the latest CSI format and are available for download in PDF, Microsoft Word, and Rich Text Format.
Select file type to download
- 3_Part_Spec_model_1000.pdf
- 3_Part_Spec_model_1000.doc
- 3_Part_Spec_model_1000.rtf
OPTIONS

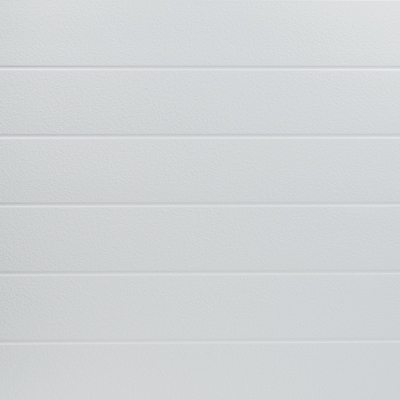

Section Profile: Ribbed Stucco
Showing 1 of 1Construction Detail: Model 1000

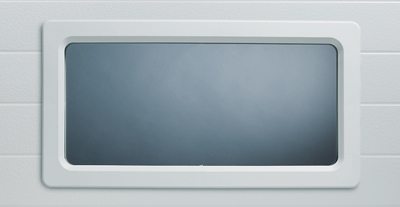

Showing 1 of 1Window Options: 24” x 12” insulated
Showing 1 of 1Color Options: Commercial White
SPECIFICATIONS
Model 1000 R-Value 9.19 Steel Thickness 24/27 ga Panel Design Pencil Groove Steel Embossment Stucco Construction Layers Three Max Std Width 24’2″ Max Std Height 20’2″ Door Thickness 2″ (5.1cm) Model 1000
Solid steel construction is the basis for the Model 1000. Two tough steel skins surround 2 inches of CFC-free polystyrene insulation. In addition, a thermal break creates a barrier to keep heat and cold from transferring through the door.
