Model 1350

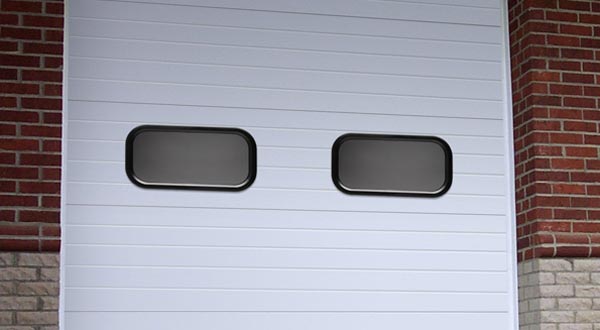

Photo 1

This energy efficient model is designed to provide maximum value for your budget. The sections are insulated with foamed-in-place polyurethane which creates a strong monolithic panel.

  • Duty Rating: Medium-Duty
  • Insulation/R-Value: 14.46
  • Layers: 3
  • Warranty: 10-Year
  • Price: $$

MAXIMUM R-VALUE

Amarr’s polyurethane insulation provides the best R-Values per inch when compared to other common types of sectional door insulation.

ECO-FRIENDLY

Amarr’s polyurethane foam is free of Ozone depleting Chlorofluorocarbons (CFC) while providing maximum insulation to help reduce the negative environmental impact of heating and cooling energy use.

3-PART SPECIFICATIONS

Amarr’s 3-Part specifications are written in the latest CSI format and are available for download in PDF, Microsoft Word, and Rich Text Format.

Select file type to download

3_Part_Spec_model_1350.pdf
3_Part_Spec_model_1350.doc
3_Part_Spec_model_1350.rtf

OPTIONS

Section Profile: Ribbed Stucco

Showing 1 of 1

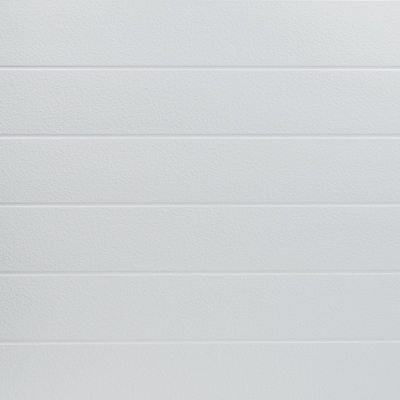

  • Ribbed Stucco

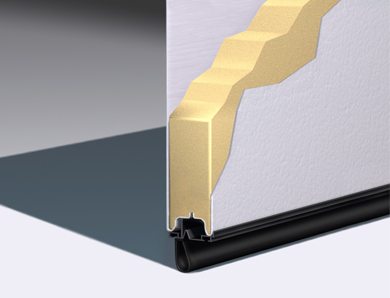

Construction Detail: Model 2720/2700/1350

Showing 1 of 1
  • Model 2720/2700/1350

Window Options: 24” x 12” insulated

Showing 1 of 3

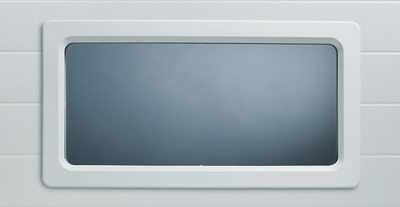

  • 24” x 12” insulated

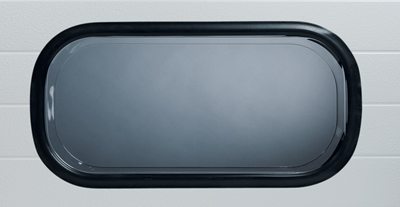

  • 26” x 13” insulated

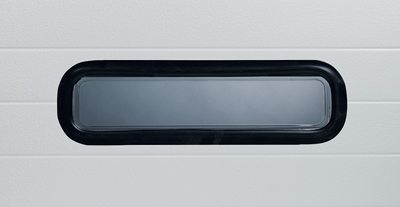

  • 24” x 6” insulated

Color Options: Commercial White



SPECIFICATIONS

 Model 1350
R-Value14.46
Steel Thickness27/27 ga
Panel DesignPencil Groove
Steel EmbossmentStucco
Construction LayersThree
Max Std Width18’2″
Max Std Height14’2″
Door Thickness1 3/8″ (3.5cm)



Model 1350

This energy efficient model is designed to provide maximum value for your budget. The sections are insulated with foamed-in-place polyurethane which creates a strong monolithic panel.
