Model 1380
Amarr’s Model 1380 features two steel skins surrounding 1 3/8″ inches of CFC-free polystyrene. Each skin consists of woodgrain-embossed flush 27-gauge steel to provide a solid wall of protection from the elements.
- Duty Rating: Medium-Duty
- Insulation/R-Value: 6.48
- Layers: 3
- Warranty: 10-Year
- Price: $$
STRENGTH + INSULATION
27 gauge exterior and interior steel bonds to rigid polystyrene to create a strong, energy efficient panel.
ECO-FRIENDLY
Amarr’s polystyrene insulation is free of Ozone depleting Chlorofluorocarbons (CFC) while providing efficient insulation to help reduce the negative environmental impact of heating and cooling energy use.
3-PART SPECIFICATIONS
Amarr’s 3-Part specifications are written in the latest CSI format and are available for download in PDF, Microsoft Word, and Rich Text Format.
Select file type to download
- 3_Part_Spec_model_1380.pdf
- 3_Part_Spec_model_1380.doc
- 3_Part_Spec_model_1380.rtf
OPTIONS

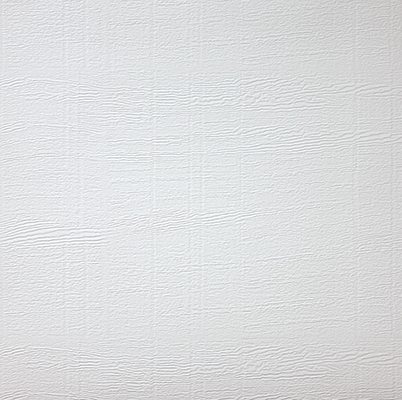

Section Profile: Flush Woodgrain Embossed

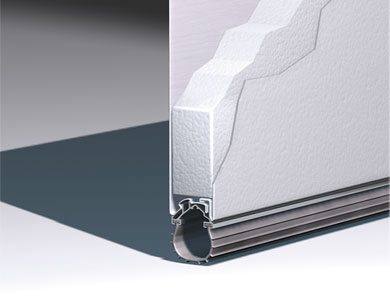

Showing 1 of 1Construction Detail: Model 1380

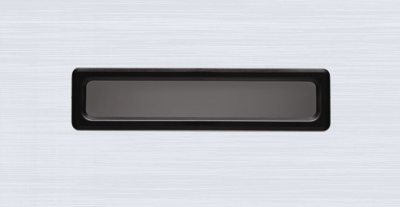

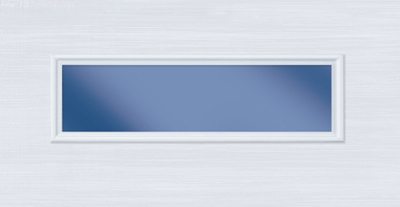

Showing 1 of 1Window Options: 21” x 13” Short Panel
Showing 1 of 3
Color Options: True White, Almond, Sandtone, Wicker Tan
SPECIFICATIONS
| Model 1380 | |
|---|---|
| R-Value | 6.48 |
| Steel Thickness | 27/27 ga |
| Panel Design | Flush |
| Steel Embossment | Woodgrain |
| Construction Layers | Three |
| Max Std Width | 16’2″ |
| Max Std Height | 14’2″ |
| Door Thickness | 1 3/8″ (3.5cm) |
Model 1380
Amarr’s Model 1380 features two steel skins surrounding 1 3/8″ inches of CFC-free polystyrene. Each skin consists of woodgrain-embossed flush 27-gauge steel to provide a solid wall of protection from the elements.
