Model 2000

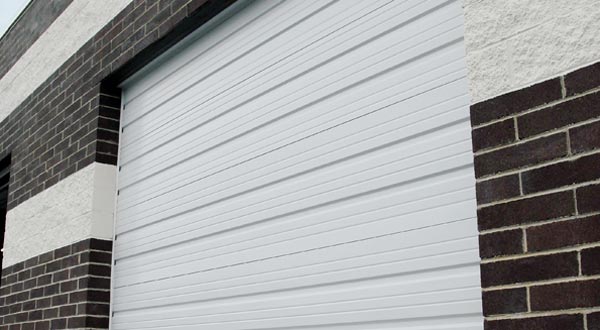

Photo 1

The Model 2000 combines Extra Heavy-Duty strength with versatility. The deep ribbed 20 gauge steel sections can be factory- or field-modified with CFC-free polystyrene insulation that features a nylon or steel backer to fit the needed application.

  • Duty Rating Extra Heavy-Duty
  • Insulation/R-Value N/A – 6.64
  • Layers 1, 2, or 3
  • Warranty 10-Year
  • Price $$$

STRENGTH + SECURITY

20-gauge steel doors with a deep ribbed profile provide maximum strength and security

PRODUCT FLEXIBILITY

The Model 2000 is available uninsulated, insulated, or insulated with a steel backer to fit most project requirements

3-PART SPECIFICATIONS

Amarr’s 3-Part specifications are written in the latest CSI format and are available for download in PDF, Microsoft Word, and Rich Text Format.

Select file type to download

3_Part_Spec_model_2000.pdf
3_Part_Spec_model_2000.doc
3_Part_Spec_model_2000.rtf

OPTIONS

Section Profile: Ribbed Smooth

Showing 1 of 1

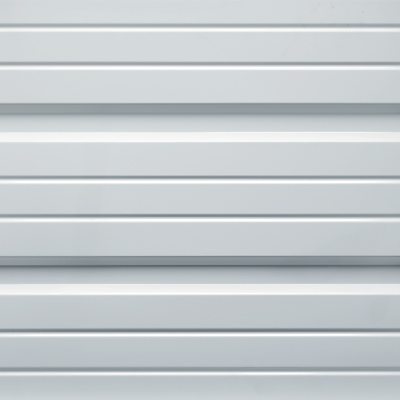

  • Ribbed Smooth

Construction Detail: Model 2000

Showing 1 of 3

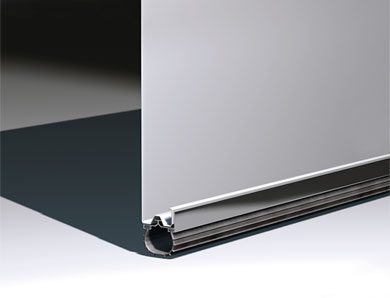

  • Model 2000
  • Model 2000i

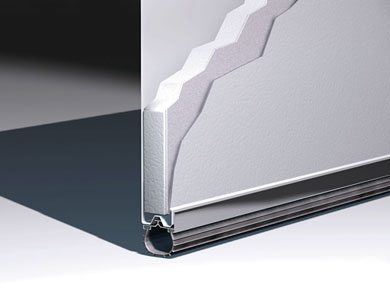

  • Model 2000s

Window Options: 24” x 12” insulated

Showing 1 of 3

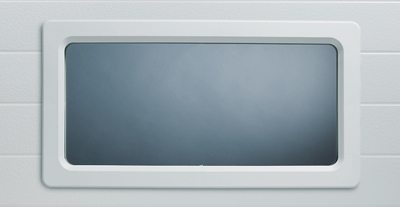

  • 24” x 12” insulated

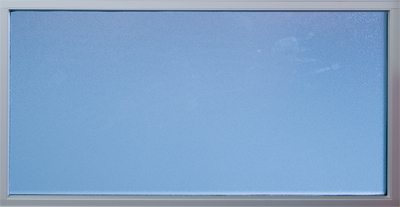

  • Fullview

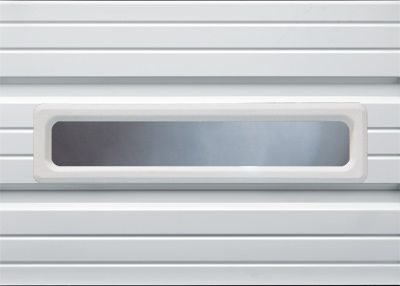

  • Commercial Windows 24 x 6 Model 2000 2400 2500

Color Options: Commercial White

SPECIFICATIONS

20002000-I2000-S
R-ValueN/A6.646.64
Steel Thickness20 ga20 ga20/25 ga
Panel DesignDeep RibbedDeep RibbedDeep Ribbed
Steel EmbossmentSmoothSmoothSmooth
Construction LayersOneTwoThree
Max Std Width24’2″24’2″24’2″
Max Std Height20′ 2″20′ 2″20′ 2″
Door Thickness2″ (5.1cm)2″ (5.1cm)2″ (5.1cm)

Model 2000

The Model 2000 combines Extra Heavy-Duty strength with versatility. The deep ribbed 20 gauge steel sections can be factory- or field-modified with CFC-free polystyrene insulation that features a nylon or steel backer to fit the needed application.
