Model 2400
The Model 2400 is the workhorse of the industry.The deep ribbed 24 gauge steel sections can be factory- or field-modified with CFC-free polystyrene insulation that features a nylon or steel backer to fit the needed application.
- Duty Rating Heavy-Duty
- Insulation/R-Value N/A Or 6.64
- Layers 1, 2, or 3
- Warranty 10-Year
- Price $$
INDUSTRY STANDARD
The 24-Gauge deep ribbed single layer sectional steel door with multiple insulation options is the most common sectional door in the industry.
PRODUCT FLEXIBILITY
The Model 2400 is available uninsulated, insulated, or insulated with a steel backer to fit most project requirements.
3-PART SPECIFICATIONS
Amarr’s 3-Part specifications are written in the latest CSI format and are available for download in PDF, Microsoft Word, and Rich Text Format.
Select file type to download
- 3_Part_Spec_model_2400.pdf
- 3_Part_Spec_model_2400.doc
- 3_Part_Spec_model_2400.rtf
OPTIONS
Section Profile: Ribbed Smooth

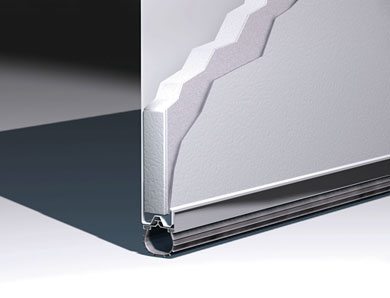

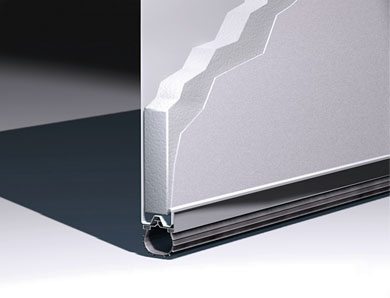

Showing 1 of 1Construction Detail: Model 2000

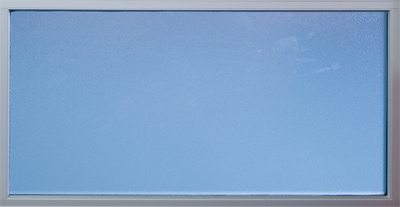

Showing 1 of 3Window Options: 24” x 12” insulated
Showing 1 of 3Color Options: Commercial White, Commercial Brown, Black
SPECIFICATIONS
Model 2400 Model 2400I Model 2400S R-Value N/A 6.64 6.64 Steel Thickness 24 ga 24 ga 24/25 ga Panel Design Deep Ribbed Deep Ribbed Deep Ribbed Steel Embossment Smooth Smooth Smooth Construction Layers One Two Three Max Std Width 24’2″ 24’2″ 24’2″ Max Std Height 20’2″ 20’2″ 20’2″ Door Thickness 2″ (5.1cm) 2″ (5.1cm) 2″ (5.1cm) Model 2400
The Model 2400 is the workhorse of the industry.The deep ribbed 24 gauge steel sections can be factory- or field-modified with CFC-free polystyrene insulation that features a nylon or steel backer to fit the needed application.
