- Duty Rating Medium-Duty
- Insulation/R-Value N/A Or 6.64
- Layers 1 or 2
- Warranty 10-Year
- Price $

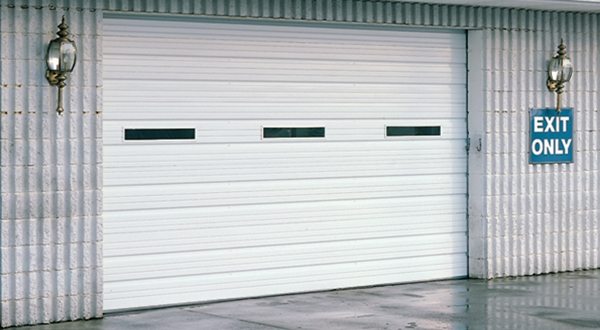

The Model 2500 combines the value of 25-gauge steel with the strength provided by the deep ribbed steel profile.
The Model 2500 is available uninsulated or insulated with a vinyl backer to fit most project requirements
Amarr’s 3-Part specifications are written in the latest CSI format and are available for download in PDF, Microsoft Word, and Rich Text Format.
Select file type to download
- 3_Part_Spec_model_2500.pdf 3_Part_Spec_model_2500.pdf
- 3_Part_Spec_model_2500.doc 3_Part_Spec_model_2500.doc
- 3_Part_Spec_model_2500.rtf 3_Part_Spec_model_2500.rtf

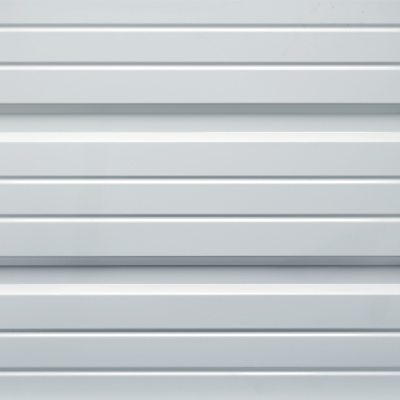

Section Profile: Ribbed SmoothShowing 1 of 1

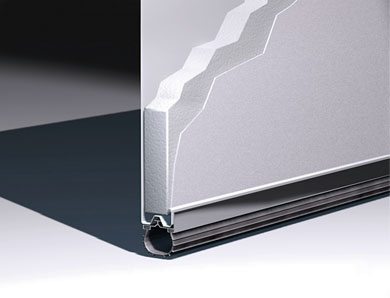

Construction Detail: Model 2000Showing 1 of 2

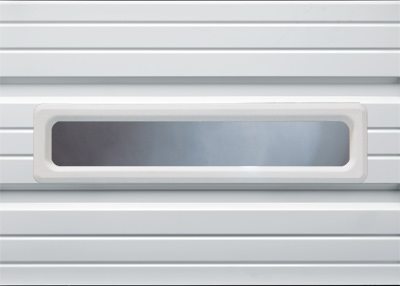

Window Options: 24” x 12” insulatedShowing 1 of 3
Color Options: Commercial White
Model 2500 Model 2500I R-Value N/A 6.64 Steel Thickness 25 ga 25 ga Panel Design Deep Ribbed Deep Ribbed Steel Embossment Smooth Smooth Construction Layers One Two Max Std Width 14’2″ 14’2″ Max Std Height 14’2″ 14’2″ Door Thickness 2″ (5.1cm) 2″ (5.1cm)
The Model 2500 combines strength with versatility for the budget sensitive projects. The deep ribbed 25 gauge steel sections can be factory- or field-modified with CFC-free polystyrene insulation that features a nylon backer to fit the needed application.
