Amarr Model #2042

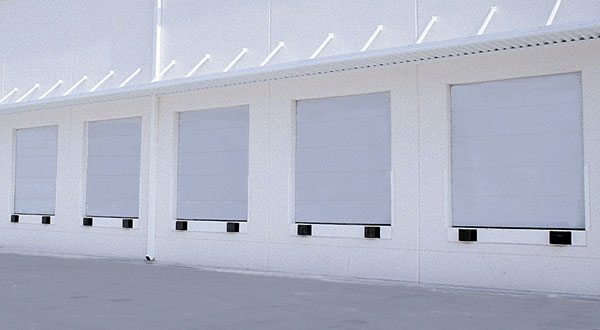

Photo 2

This Extra Heavy-Duty top-of-the-line high R-value door is constructed using 20-Gauge exterior steel that is foamed-in-place with polyurethane insulation which creates a strong monolithic panel that is energy efficient.

  • Duty Rating: Extra Heavy-Duty
  • Insulation/R-Value: 19.4
  • Layers: 3
  • Warranty: 10-Year
  • Price: $$$

Maximum R-value

Our polyurethane insulation provides the best R-Values per inch when compared to other common types of sectional door insulation.

Security + Strength

20-gauge steel exterior skin with the added strength of foamed-in-place polyurethane insulation provide maximum strength and security for your opening

3-Part Specifications

Amarr’s 3-Part specifications are written in the latest CSI format and are available for download in PDF, Microsoft Word, and Rich Text Format.

Select file type to download

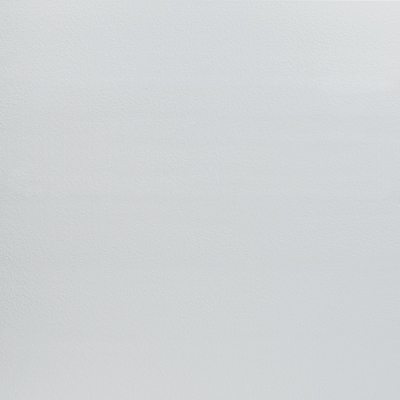

Section Profile: Flush Stucco Panel

Showing 1 of 1
  • Flush Stucco Panel

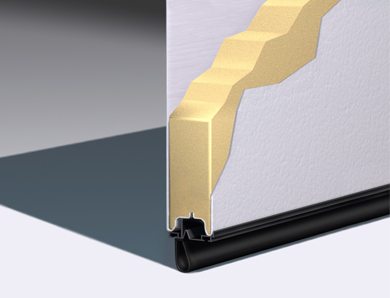

Construction Detail: Model 2720/2700/1350

Showing 1 of 1
  • Model 2720/2700/1350

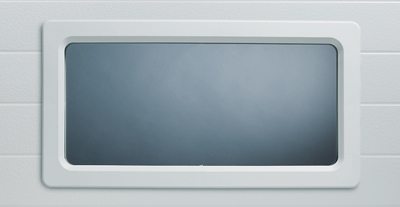

Window Options: 24” x 12” insulated

Showing 1 of 4
  • 24” x 12” insulated

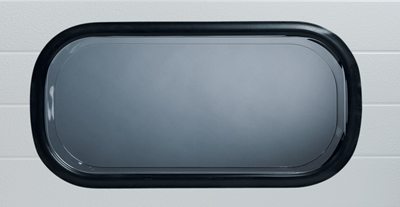

  • 26” x 13” insulated
  • 24” x 6” insulated

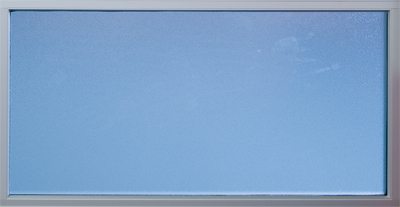

  • Fullview

Color Options: Commercial White




Steel Thickness20/27 Ga.
Panel DesignFlush
Steel EmbossmentStucco
Construction LayersThree
Max Std Width28’2″
Max Std Height20’2″
Door Thickness5.1cm)
