Description
Designed specifically for counter top security where a clean, professional appearance is a must, these counter shutters provides all of the UL Listed features of a full sized fire door to protect your elevated openings in fire walls.
Fire Protection

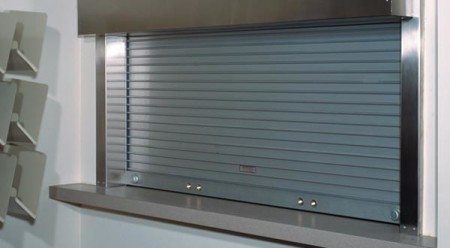

The Model 4500 is designed to secure the retail counter opening in a fire wall while providing a clean, professional appearance while open or closed.
Product Flexibility
The Model 4500 is available in painted or stainless steel to fit most counter fire door specifications requirements.
Operators
 Chain Hoist |  Electric Operator |
| Push Up | Crank |
Slat Profile
 AF128 | |
Fire Door Release Devices
 XPBB |  XPBBVB |
| XP24 | |
Technical Features
 Optional Warning Strobes, Smoke Detectors | Optional Warning Voice/Alarm Enunciators |
 Clean Boxed Shape Guides | |
Specifications
Specifications
| STEEL SLAT GAUGE OPTIONS | 22 & 20 Ga |
|---|---|
| MAX DOOR WIDTH | 14’0″ |
| MAX DOOR HEIGHT | 9’4″ |
| GUIDES | Box Shaped Steel |
| WIND LOAD AVAILABLE | No |
