Description

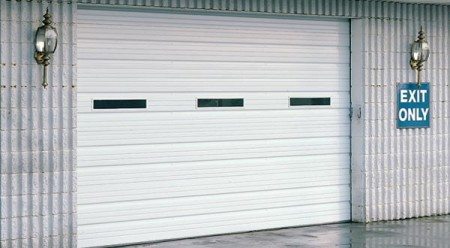

The Model 2402 is the workhorse of the industry. The deep ribbed 24 gauge steel sections can be factory- or field-modified with CFC-free polystyrene insulation that features a nylon or steel backer to fit the needed application.
INDUSTRY STANDARD
The 24-Gauge deep ribbed single layer sectional steel door with multiple insulation options is the most common sectional door in the industry.
PRODUCT FLEXIBILITY
The Model 2400 is available non-insulated, insulated, or insulated with a steel backer to fit most project requirements.
Section Profile
Ribbed Smooth
Colors
- Commercial White
- Commercial Brown
- Black
- Commercial Gray
Construction
 Model 2402 – Single Layer Steel |  Model 2412 – Double Layer Steel + Insulation |
 Model 2422 – Triple Layer Steel + Insulation + Steel backer |
Windows
 24″ x 12″ Insulated |  Full View |
 24″ x 6″ | |
Specifications
Specifications
| 2402 | 2412 | 2422 | |
| R-VALUE | N/A | 7.0 | 7.0 |
| STEEL THICKNESS | 24 ga | 24 ga | 24/25 ga |
| PANEL DESIGN | Deep Ribbed | Deep Ribbed | Deep Ribbed |
| STEEL EMBOSSMENT | Smooth | Smooth | Smooth |
| CONSTRUCTION LAYERS | One | Two | Three |
| MAX STD WIDTH | 30’2″ | 30’2″ | 30’2″ |
| MAX STD HEIGHT | 26’1″ | 26’1″ | 26’1″ |
| DOOR THICKNESS | 2″ (5.1cm) | 2″ (5.1cm) | 2″ (5.1cm) |
