Description

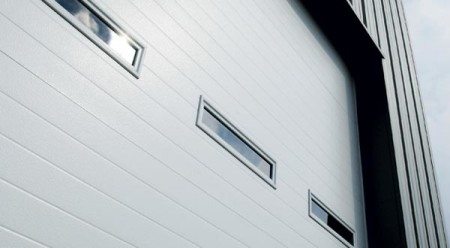

Solid steel construction is the basis for the Model 2432. Two tough steel skins surround 2 inches of CFC-free polystyrene insulation. In addition, a thermal break creates a barrier to keep heat and cold from transferring through the door.
STRENGTH + INSULATION
24 gauge exterior and 27 gauge interior steel bonds to rigid polystyrene to create a strong, energy efficient panel.
ECO-FRIENDLY
Amarr’s polystyrene insulation is free of Ozone depleting Chlorofluorocarbons (CFC) while providing efficient insulation to help reduce the negative environmental impact of heating and cooling energy use.
Section Profile
Ribbed Stucco
Construction
Triple-Layer Steel + Insulation + Steel
Windows
![]() 24″x12″ Insulated | ![]() |
Colors
- True White
- Sandtone
- Commercial Brown
- Commercial Gray
Specifications
R-VALUE | 9.4 |
---|---|
STEEL THICKNESS | 24/27 Ga. |
PANEL DESIGN | Pencil Groove |
STEEL EMBOSSMENT | Stucco |
CONSTRUCTION LAYERS | Three |
MAX STD WIDTH | 24’2″ |
MAX STD HEIGHT | 26’1″ |
DOOR THICKNESS | 2″ (5.1cm) |
