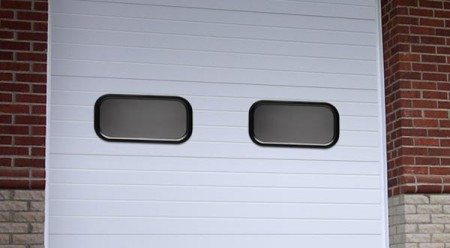

The model 2741 is an energy efficient model is designed to provide maximum value for your budget. The sections are insulated with foamed-in-place polyurethane which creates a strong monolithic panel.
Amarr’s polyurethane insulation provides the best R-Values per inch when compared to other common types of sectional door insulation.
Amarr’s polyurethane foam is free of Ozone depleting Chlorofluorocarbons (CFC) while providing maximum insulation to help reduce the negative environmental impact of heating and cooling energy use.
Steel + Insulation + Steel
Track: All Amarr Doors are available with both
2″ or 3″ track in Standard Lift, High Lift, Vertical Lift,
Low Headroom, and Follow the Roof Pitch. Custom track configurations are also available. For drawings and more information, please visit our downloads website.
Hardware: Amarr hardware includes minimum
14-gauge galvanized steel hinges and 13-gauge galvanized steel track brackets. All rollers have
minimum 10-ball bearings.
Springs: Torsion springs are oil tempered, helical wound and custom computed for each door for a minimum 10,000 cycle life. Optional springs are available up to 100,000 cycle life.
24″ x 12″ Insulated
24″ x 6″ Insulated
26″ x 13″ Insulated
- True White
|STEEL THICKNESS||27/27 Ga.|
|PANEL DESIGN||Pencil Groove|
|MAX STD WIDTH||18’2″|
|MAX STD HEIGHT||14’1″|
|DOOR THICKNESS||1 3/8″(3.5cm)|
